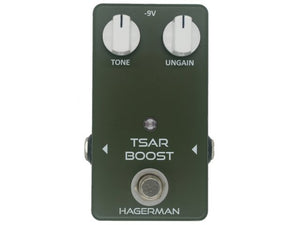

Tsar Boost - Germanium Pedal

TSAR BOOST is a single germanium transistor boost pedal designed to give you classic tones, but with a few twists. First, the input impedance has been raised to the point where humbuckers can be used without suffering low end loss. Second, a versatile tone control has been added which turns the pedal into an adjustable treble boost, for those Brian May tones.

Specifications

• True bypass
• 15dB maximum gain
• 30Hz to 12kHz
• 1Vrms output swing
• 9V to 15V @2mA power

Downloads

• User Manual

Videos
